Fiber laser (none mopa and mopa) can mark on different materials as : Aluminium, Gold, Platinum, Silver, Titanium, Brass, Tungsten, Carbide, Nickel, Stainless steel, Crome, Copper, Synthetic leathers, Carbon fiber, Fiberglass, PLT, PS, ABS, PBT, Silicon, Stones, Marble, Colored Acrylics

These parameters are provided as a "general range" and therefore some user testing and experimentation is required. Individual materials and preference will determine the final combination of settings for each application.
Learn how the hatches and frequency cause different effects. Look at it like sandpaper. Smaller frequency
more aggressive. And power is how much pressure you put down and speed is the rate of sanding the surface.

Here is ezcad files that is important for you to mark on stainless steel, it will give you some information what your fiberlaser can do.
1. Power vs Speed Grid 2. Power vs Freq Grid 3. Frequency vs Hatch Grid


Do you need help ?? Join the groups below. I think these are one of the best groups on facebook regarding fiber lasers.
Pixel2pulse 3D UV group Bogong Machinery inspired
Feeltek 3D Laser Fiber Laser The Next Level Big Scary Lasergroup Fiber Laser Tips

CUT settings = Use 0.2mm offset in design for cutting.
If you want to contribute to this site, please register and add your fiber laser settings to help others.

The Pulse [ns] settings are for MOPA (Master Oscillator Power Amplifier) fiber laser only.

Suggested Material Settings - Click on material name to show settings.
  • ALUMINUM WHITE/FROST - 50W
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    Raycus 50W 1 100 90 2000 45 2 0.03
  • STEEL DEEP ENGRAVING
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    Raycus 30W 1 100 90 1500 35 25 0.02
    2 100 180 1500 35 25 0.02
    3 100 315 2000 75 5 0.02
  • WHITE COLOR ON BRASS
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    Raycus 30W 1 100 90 2000 60 4 0.03
    2 100 180 2000 60 4 0.03
  • DEEP ENGRAVE ON BRASS
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    Raycus 30W 1 100 90 1500 35 25 0.02
    2 100 180 1500 35 25 0.02
    3 100 315 2000 75 5 0.02
  • WHITE ON ANODIZED ALUMINUM
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    Raycus 30W 1 100 90 2000 55 1 0.03
  • ALUMINUM DEEP ENGRAVE
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    Raycus 30W 1 100 90 1500 35 25 0.02
    2 100 180 1500 35 25 0.02
    3 100 315 2000 75 25 0.02
  • ENGRAVE ON MIRROR
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    Max 30W 1 50 90 700 25 1 0.03 Laser will remove the backing of mirror.
  • ALUMINUM BUSINESSCARD PAINTED
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    Raycus 30W 1 30 45 600 25 1 0.03
  • STAINLESS STEEL FIRING PIN
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    Raycus 50W 1 100 90 1500 35 5 0.03 Courier New Greek, 3.4mm height, .35 between letters, size 2x13mm.
    2 100 270 1500 35 5 0.03
    3 100 135 2000 75 5 0.03
  • ALUMINUM DEEP ENGRAVING
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    30W Raycus 1 100 0 1000 30 0.04 300mm All calc, Follow edge once, Images - Interupted hatch, Text- Continues hatch
  • ENGRAVE ON COLORED GLASS
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    30W Raycus 1 50 0 500 20 0.03 300x300
  • REMOVE COATING FROM TUMBLERS
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    30W Raycus 1 32 0 1000 20 0.03
  • ROSEGOLD METAL/GLOSSY COATING.
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    Raycus 30W 1 70 0 50 20 0.01 You have to mark it 2-4 times before it mark.
  • GOLD ENGRAVING 18K
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    Raycus 30W 1 40 0 700 20 2 0.01 All calc
  • ENGRAVE ON STONE
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    Raycus 30W 1 50 90 500 20 5 0.02
  • ENGRAVE ON BROWN LEATHER
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    Raycus 20W 1 40 0 2800 40 1 0.03 Marc contour, All calc
  • DEEP ENGRAVING SS/CS/ALUMINUM
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    30watt MAX Q-Switched 1 95 5 1000 30 18 0.03
  • BLACK COLOR MARKING ON STEEL
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    Raycus 30W 1 90 0 100 25 Unfocus 2-5mm.
  • WHITE COLOR MARKING ON STEEL
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    Raycus 30W 1 50 0 1500 35 0.03-0.05 On focus
  • BLACK COLOR MARKING ON ABS
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    Raycus 30W 1 30 0 500 30 0.03 On focus
  • BLACK ON ALUMINUM
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    Raycus 30W 1 100 0 100 30 0.02
  • BLACK ON COPPER
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    Raycus 30W 1 100 0 200 45 1 0.001 70mm may work with 400 speed
  • BLACK ON SILVER
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    Raycus 30W 1 60 0 100 30 1 0.002 70mm
  • MOPA-STAINLESS-BLACK ANNEALING
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    MOPA M7 30W 1 20 0 150 60 1 .002 150x150
  • IRON DOG TAGS
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    Raycus 30W 1 70 45 500 20 6 0.02 150x150
  • MOPA-ALUMINIUM-DARK ENGRAVING
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    MOPA 30W 1 100 90 400 75 1 0.01 150x150 can feel to touch
  • MOPA-ALUMINIUM-LIGHT ENGRAVING
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    MOPA-30W 1 100 90 1000 20 1 0.01 150x150 can feel to touch
  • ANODIZED BUSINESS CARD ANY COLORS
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    Raycus 30W 1 30 90 600 20 0.03 150x150 will mark card
  • ANODIZED BUSINESS CARD ANY COLORS SMOOTH TOUCH..
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    Raycus 30W 1 50 90 800 75 0.03 150x150 smooth engraving..
  • ENGRAVE ON LEATHER
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    Raycus 30W 1 30 90 300 20 0.05 150x150 It smells. Have good ventilation
  • BLACK ENGRAVING ON STAINLESS STEEL TAGS
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    Raycus 30W 1 50 552 300 30 0 .01 150 mm
  • CUTTING BRASS
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    Tykma 50 watt 1 100 45 1500 50 99 0.05 100mm s Use Wobble 1mm and 0.05
  • ANNEAL STAINLESS STEEL
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    Raycus 30W 1 85 0 200 20 0 0.04 150x150mm unfocus 4-5 below
  • DARK ENGRAVING STAINLESS STEEL KNIFE
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    Raycus 30W 1 600 30 700 20 0 0.001 200x200
  • ROUND DOG TAGS PLATED
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    Raycus 30W 1 40 0 400 20 0 0.03 150x150mm
  • WHITE ON TUMBLERS
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    Raycus 30W 1 32 0 1000 32 0 0.03 150x150mm

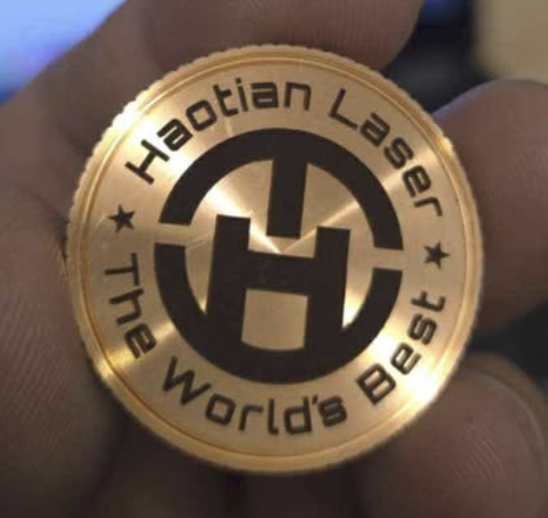

  • BRASS COINS
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    Raycus 30W 1 50 0 200 20 0 0.01 150x150mm All calc
  • DOGTAGS STEINLESS STEEL
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    Raycus 30W 1 70 90 300 20 0 0.04 100x100 all calc
  • WHITE ON BLACK CASTED ACRYLIC
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    Raycus 30W 1 40 0 600 40 0 0.05 150x150mm
  • BLUE ON STAINLESS STEEL
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    JPT MOPA 30W M6-M7 1 90 0 1300 4 140 1 0.002 175mm
  • RED ON STAINLESS STEEL
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    JPT MOPA 30W M6-M7 1 30 0 400 80 200 1 0.005 175mm
  • YELLOW ON STAINLESS STEEL
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    JPT MOPA 30W M6-M7 1 55 0 1500 13 200 1 0.005 175mm
  • GREEN ON STAINLESS STEEL
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    JPT MOPA 30W M6-M7 1 30 0 1500 13 350 1 0.001 175mm
  • STAINLESS STEEL RING BLACK ANNEAL
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    Raycus 30W 1 25 0 60 0 60 0 0,003 150 unfocus +2mm below
  • RED GLASS
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    Raycus 30W 1 50 0 500 0 20 1 0,03 210mm
  • PETG PLASTIC
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    Raycus 30W 1 30 0 500 0 30 1 0.03 210mm
  • ABS PLASTIC
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    Raycus 30W 1 30 0 500 0 30 1 0.03 210mm
  • WHITE GLASS
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    Raycus 30W 1 50 0 500 0 20 1 0.02 210mm
  • WHITE MARKINGS ON ALUMINUM
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    JPT 50w 1 80 0 500 0 30 0 0 110 White Markings
  • DARK MARKINGS STAINLESS STEEL 50W
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    JPT 50w 1 85 0 250 0 30 0 0.01 110 Dark markings/engraving on Stainless Steel
  • PMAGS 50W
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    JPT 50w 1 20 0 2500 0 50 0 0.01 110 Marks PMAGs
  • ANNEALING - BLACK ON STAINLESS STEEL (KNIFE)
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    Raycus 30W 1 30 0 100 0 60 0.003 150mm on focus
  • BLACK ON STAINLESS STEEL (COASTERS)
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    Raycus 30W 1 80 0 250 0 30 0 0.02 110mm minus 4mm out of focus
  • BLACK ON ALU
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    30W Raycus 1 90 90 300 0 40 1 0.05 150mm wobble .5mm
  • BLACK ON PLASTIC - RAYCUS 20W
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    Raycus 20W 1 45 0 1000 0 25 0.04 110mm
  • RED ON STAINLESS STEEL - MOPA
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    JPT MOPA 1 45 0 1000 60 400 0.003
  • BLUE ON STAINLESS STEEL - MOPA
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    JPT MOPA 1 45 0 1000 6 300 0.002
  • BLACK ON STAINLESS STEEL - MOPA
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    JPT MOPA 1 45 1000 100 45 0.001
  • GREEN ON STAINLESS STEEL - MOPA
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    JPT MOPA 1 25 1000 15 350 0.001
  • WHITE ON STAINLESS STEEL - MOPA
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    JPT MOPA 1 45 1000 6 300 0.002
  • 1911 PISTOL SLIDE HARD METAL
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    Raycus 50W 1 85 300 0 50 20 .03 150mm Hatch 1: Xhatch, auto rotate 30deg
    2 35 1500 0 50 3 .04
  • BLACK ON STAINLESS STEEL (RAYCUS 30W)
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    Raycus 30W 1 30 0 200 0 60 1 0.01 290
  • 0.4MM CUTTING BRASS WITH WOBBLE NO HATCH - OUTLINE ONLY
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    Raycus 30W 1 100 50 0 20 13 wobble Diameter 0.05. Distance 0.03
  • ANNEAL STAINLESS STEEL FILLET KNIFE - 2MM UNFOCUS UP
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    30W Raycus 1 30 0 100 0 60 1 0.003 150mm unfocus 2mm UP
  • BROWN LEATHER
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    20W Raycus 1 20 1000 0 45 1 0.05 110
  • DEEP ENGRAVING SILVER
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    Raycus 20W 1 100 300 0 20 12 0.01 110 Autorotate 15 degrees
  • CUTTING BRASS 1.5MM
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    20 W raycus 1 100 300 0 20 300 70
  • ALUMINUM MARKING - WHITE - FOCUS
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    30w max 1 90 2000 0 70 1 0.045
  • ALUMINUM MARKING - BLACK - FOCUS
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    30w max 1 95 300 0 20 0.045
  • RAINBOW LOOK STAINLESS STEEL - 30W JPT M6 MOPA
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    30W JPT M6 MOPA 1 70 500 200 60 0.02 174 3mm out of focus(Up)
  • RAINBOW EFFECT NON MOPA 304 STAINLESS STEEL
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    30w max 1 45 0 300 0 30 0.05 ON FOCUS
  • DEEP ENGRAVE ON SILVER
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    50W Raycus 1 90 100 0 20 15 0.01 Autorotate 15 degrees
  • LATON (VAINAS DE BALAS)
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    JPT 50w 1 85 0 100 0 35 0.02 F-290 Cross hatch y Contorno
  • CUT 0.4MM SILVER
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    30W Raycus 1 95 20 0 20 14 70x70
  • CUT 0.5MM SILVER
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    30W Raycus 1 95 20 0 20 20 70x70
  • CUT 0.6MM SILVER
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    30W Raycus 1 95 20 0 20 30 70x70
  • CUT 0.7MM SILVER
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    30W Raycus 1 95 20 0 20 50 70x70
  • CUT 0.8MM SILVER
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    30W Raycus 1 20 0 0 20 65 70x70
  • CUT 0.9MM SILVER
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    30W Raycus 1 95 0 0 20 70x70
  • POM (BLACK) - WHITE MARKING 30W MOPA
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    MOPA M7 30W 1 45 0 1000 0 45 0,03
  • GLOCK STIPPLING
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    30W Raycus 1 35 4000 0 35 0.05 150x150 all calc, follow edge
  • EM-SMART - STAINLESS STEEL ENGRAVING
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    EM-SMART 20W 1 50 90 300 0 20 0.05
  • EM-SMART - ENGRAVING SLATE
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    EM-SMART 20W 1 80 0 1200 0 20 5
  • CUT BRASS 0.5MM
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    JPT 50w 1 90 70 0 50 Wobble Diameter/Distance 0.01mm
  • BLACK MARKING ON 316 STAINLESS STEEL 50W RAYCUS
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    50W Raycus 1 25 45 50 0 25 1 0.025 f 210 150mm x 150mm
    2 25 -45 50 0 25 1 0.025 f 210 150mm x 150mm
  • BLACK ANODIZED BUSINESS CARD 50W RAYCUS
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    50W Raycus 1 20 0 800 0 75 1 0.03 f 210 150mm x 150mm0
  • BLUE STAINLESS STEEL NON MOPA
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    JPT LP 50W 1 10 0 800 200 120 1 0.002 110mm In Focus 167mm
  • PINK STAINLESS STEEL NON MOPA
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    JPT LP 50W 1 10 0 800 200 140 1 0.003 110mm +1.8mm Focus
  • LASER CUTTER IN CARBON STEEL
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    JNCT 1 1000 35 0 0 www.jnctlaser.com
  • BLACK ON CARDBOARD
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    JPT 50w 1 23 90 1200 0 300 1 0.04 200x200
  • LASER STIPPLING GLOCK FRAMES
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    30W jpt 1 35 90 1400 0 60 0.1 150 Do many passes
  • SLATE COASTERS LASER ENGRAVING
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    50W JPT 1 70 0 175 0 45 0.1 150
    2 55 90 2000 0 300 0.1 150
  • BLACK ON WHITE PLASTIC APPLE AIRPODS MAY WORK ON DIFFERENT APPLE PRODUCTS
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    50W JPT 1 15 90 2000 0 50 0.05 150 3 passes
  • FIBER CARBON ENGRAVING
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    JPT 30W 1 90 90 800 200 45 3 0.05 110
  • WHITE/GREY ON GOLD
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    30W jpt 1 45 1500 200 37 0.05 100mm
  • GOLD / SILVER CUTTING
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    30W jpt 1 90 100 200 37 80 0.5 wobble dia:0.30, wobble dis:0.1
  • ENGRAVE SILVER
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    1500 1 50 0 1500 200 37 0.4 100
  • SILICON PLASTIC
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    50W JPT 1 20 90 800 200 5 0.5
  • ABS PLASTIC ENGRAVING
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    30W Raycus 1 30 0 500 0 30 0.03
  • PMAG ENGRAVING
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    50W JPT 1 25 0 2500 0 50 0.01 100 100MM OPEX LENS
  • PBT PLASTICS
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    30W jpt 1 25 90 800 0 10 0.05
    2 25 45 800 0 0 0.05
  • BLACK ON ALUMINUM MOPA
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    30W JPT MOPA 1 45 0 1200 10 250 0.003 100
  • BLACK ON ALUMINUM MOPA 2
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    30W JPT MOPA 1 30 1000 6 540 0.001 100
  • WHITE ON ALUMINUM MOPA
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    30W JPT MOPA 1 80 2000 10 265 0.5
  • STONE / GRANITE
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    30W jpt 1 30 90 500 0 37 0.05
  • NATURAL LEATHER
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    30W jpt 1 45 800 0 37 0.05 smells
  • SYNTHETIC LEATHER
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    30W jpt 1 25 0 1200 0 15 0.05 100
  • BLACK ON BRASS
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    30W Raycus 1 90 90 150 0 20 0.02
  • 50W JPT ENGRAVE POWDER COATED TUMBLER
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    50W JPT 1 55 500 0 50 0.04 second hatch is cleanpass
    2 35 2000 0 30 0.04
  • 50W JPT STAINLESS STEEL BLACK ENGRAVE
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    50W JPT 1 40 200 0 60 0.005 unfocus up 3mm
  • CUT ALUMINUM
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    50 JPT 1 95 100 0 20 100 Wobble param on both : 0.05
  • NICE BLACK ON STAINLESS STEEL KNIFE MOPA
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    30W JPT MOPA 1 30 0 250 200 80 1 0.01 enable crosshatch
  • 50W JPT - WHITE ON BLACK ACRYLIC
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    50W JPT 1 12 0 CH 1000 0 40 1 0.05 210 Good for all around. If higher detail is needed use P:8% S:900
  • 50W JPT - WHITE ON CHALKBOARD
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    50W JPT 1 5 0 CH 1200 0 200 1 0.097 300 .095 to .097 are pretty close but it’s worth testing for a solid bright white. Tested on chalkboard wall art pieces from Hobby Lobby.
  • MOPA 60W STAINLESS STEEL BLACK ANNEAL.
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    JPT M7 60W MOPA 1 20 0 250 200 60 1 0.003 170 defocus up by 3 to 4 mm
  • CUTTING SILVER 2MM
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    JPT 200W 1 95 100 200 20 25 110
  • CUTTING SILVER 1.5MM
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    JPT 200W 1 95 100 200 20 14 110
  • CUTTING SILVER 1MM
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    JPT 200W 1 95 100 200 20 5 110
  • CUTTING SILVER 1MM JPT 100W
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    JPT 100W 1 95 50 20 200 45 110
  • PHOTO BLACK MARKING STAINLESS STEEL - 50W JPT
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    50W JPT 1 35 0 40 0 30 1 0.078 150x150 Unfocuced -5.5mm
  • POM (BLACK) - WHITE MARKING 100W MOPA
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    MOPA M7 100W 1 7 0 1000 0 45 0.02 100
  • SCRATCH PAPER 60W MOPA 25D
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    JPT M7 60W MOPA 1 20 0 1000 200 30 1 0.005 170 leaves a strong smell.
  • GOLD ON STAINLESS STEEL - MOPA
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    80w JPT MOPA 1 57 90 350 75 25 1 .06 110 In focus
  • BLACK/ GREY ON WHITE HDPE
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    30W Raycus 1 50 0 500 0 50 2 0,05 110
  • BLACK ON ALUMINUM - 80W MOPA
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    80W Mopa 1 40 0 1000 10 625 1 0.002 300 Focused
  • GRAY MARKING ON SILVER (830/925)
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    80W Mopa 1 90 0 1500 200 37 1 0.01 300x300 Unfocused 3mm up
  • BLACK ON BRASS JPT 50W
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    JPT 50w 1 60 90 300 200 60 0.004 110
  • CUT SILVER 1.5MM
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    JPT 100W 1 95 0 300 200 70 10 110 wobble .22 dist.03 step
  • ALUMINUM OXIDE BLACK MARKING - 80W JPT
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    80W JPT 1 75 300 4 430 0.01mm 150
  • BITMAP ON LEATHER
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    Raycus 20W 1 40 90 100 0 20 1 0,05 110x110 backround is a degraded color
  • JPT 200W SILVER CUTTING 1.2MM
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    JPT 200W 1 90 90 300 500 130 7 70mm
  • JPT 200W SILVER CUTTING 2 MM
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    JPT 200W 1 90 90 300 500 130 25 70mm
  • MIRROR
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    Mopa 60 1 40 0 1000 200 75 .042 175 Lightburn was what i used
  • BLACK ON ALUMINUM OXIDE
  • Model Hatch Power % Angle Speed (mm/s) Pulse [ns] Freq Type Loop Line Space Lens Type Picture Notes
    JPT 80W 1 75 300 4 430 0.01 150
